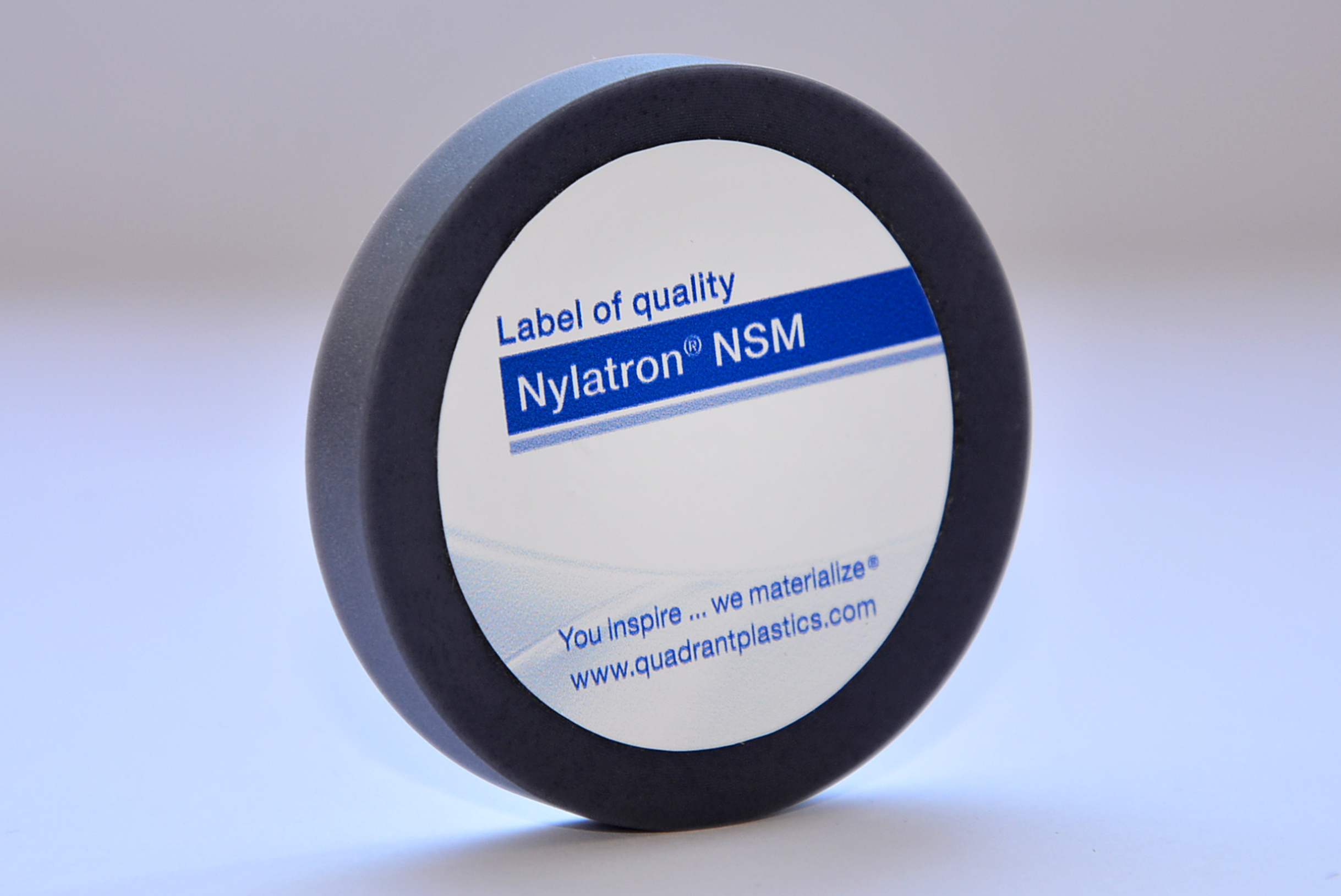

Nylatron® NSM

Nylatron® NSM

• High mechanical strength, stiffness, hardness and toughness
• Good fatigue resistance
• High mechanical damping ability
• Good sliding properties
• Excellent wear resistance
• Good electrical insulating properties
• Good resistance to high energy radiation (gamma- and X-rays)
• Good machinability

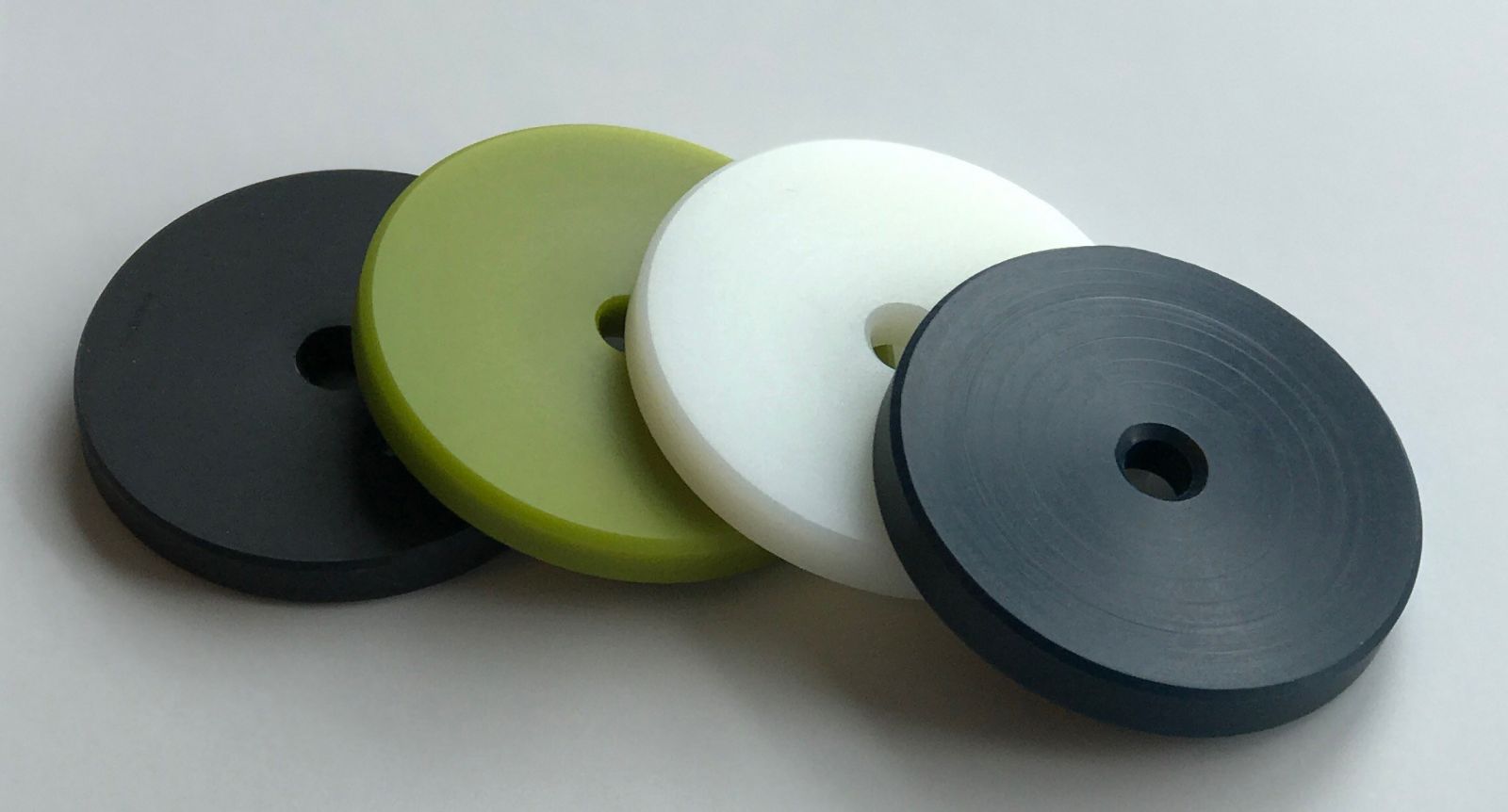

Nylatron NSM is a proprietary cast nylon 6 formulation containing solid lubricant additives which grant this material self-lubricity, excellent frictional behaviour, superior wear resistance and outstanding pressure-velocity capabilities (up to 5 times higher than conventional cast nylons). Being particularly suited for higher velocity, unlubricated moving parts applications, it is the perfect complement to the oil-filled grade Ertalon^® LFX.

Proven Applications

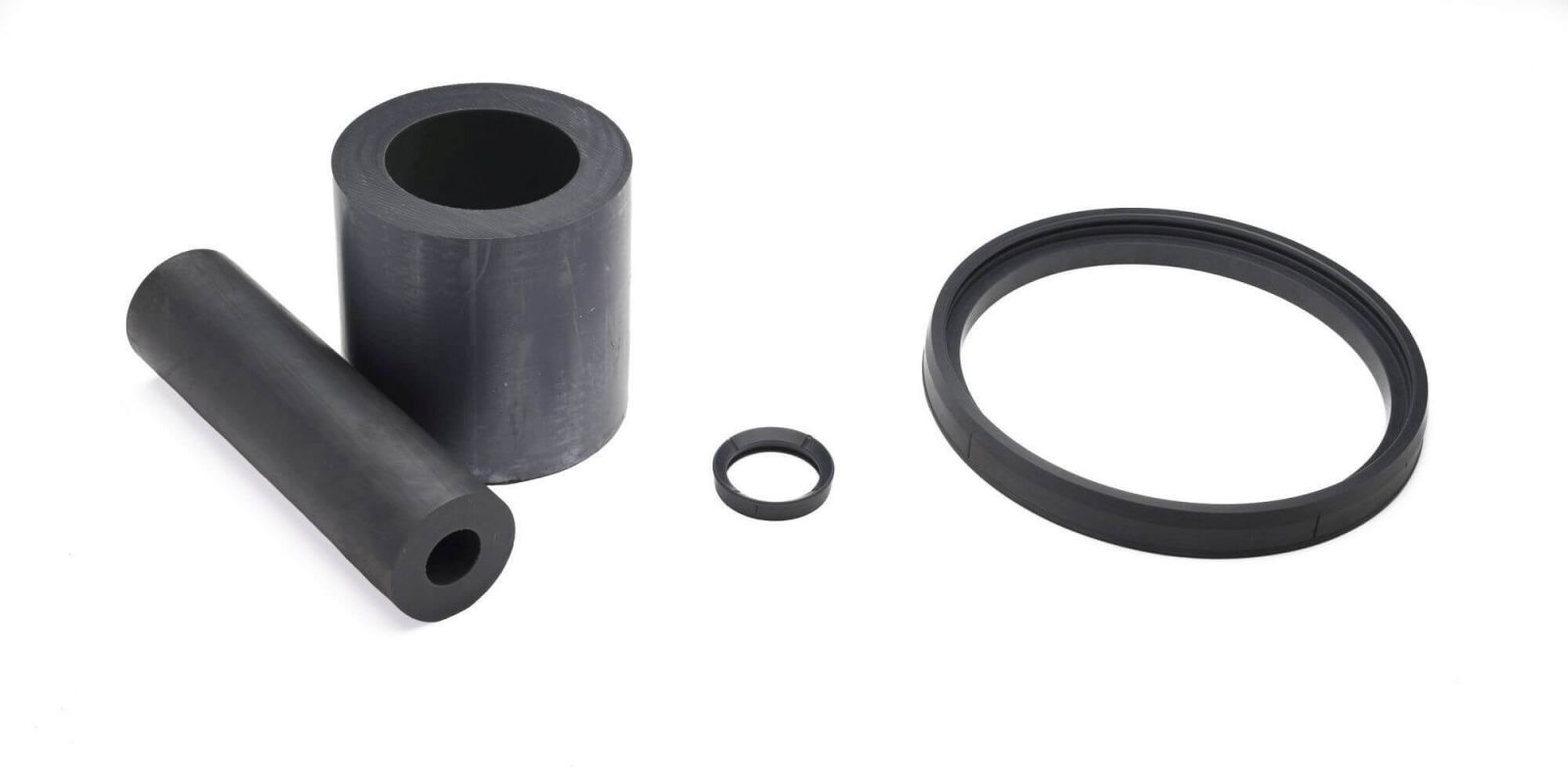

Bearings: Nylatron^® NSM offers up to 10 times longer part life than standard type 6 nylon in this pivot bushing on a mining dump truck. (Prior material: Bronze).

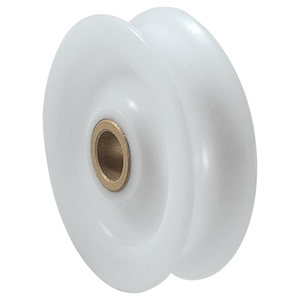

Rollers, Wheels, Wear Components: Nylon offers better wear resistance, compressive strength and fatigue resistance than other materials in a variety of wear applications. (Prior materials: Steel, Aluminum, UHMW-PE, Injection Molded Nylon).

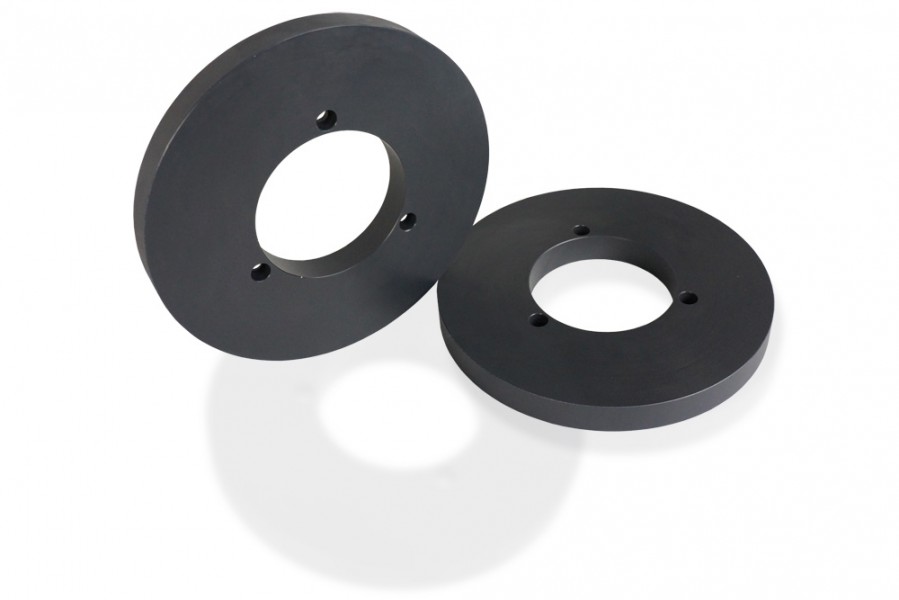

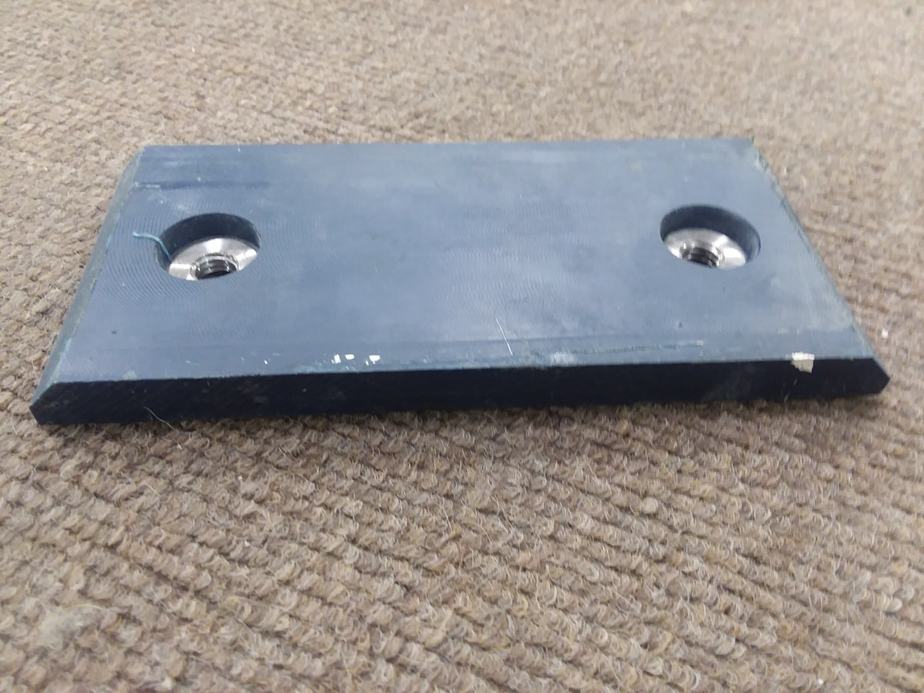

Wear Pads: Wear pads made of Nylatron® NSM are light weight, able to support heavy loads, are non-abrasive to mating surfaces. (Prior material: Bronze and cast iron covered with UHMW-PE).

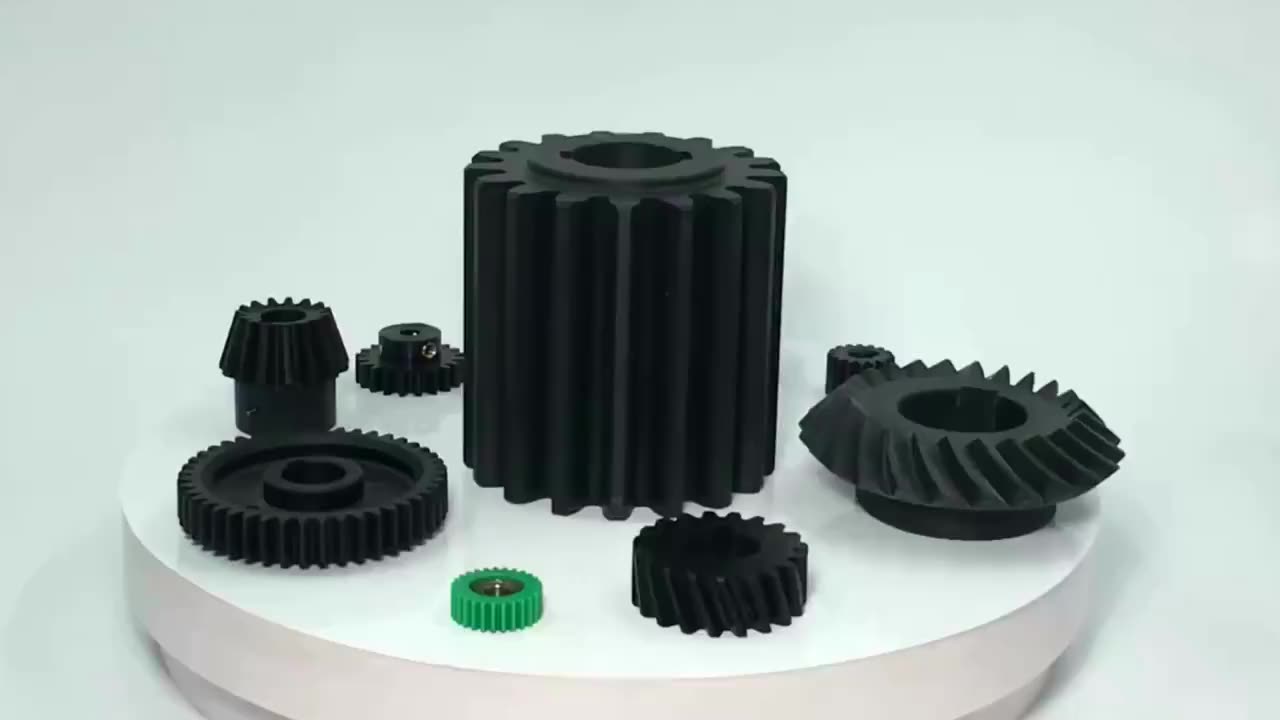

Gears: Gears made of Nylatron® NSM run quieter and wear longer without the need for lubrication on processing equipment. (Prior materials: Bronze and steel).

Size Available

• Sheets: 3mmT to 80mmT; 1000mmL or 1010mmW or 1220mm; 2000mmL or 2020mmL or 3050mmL

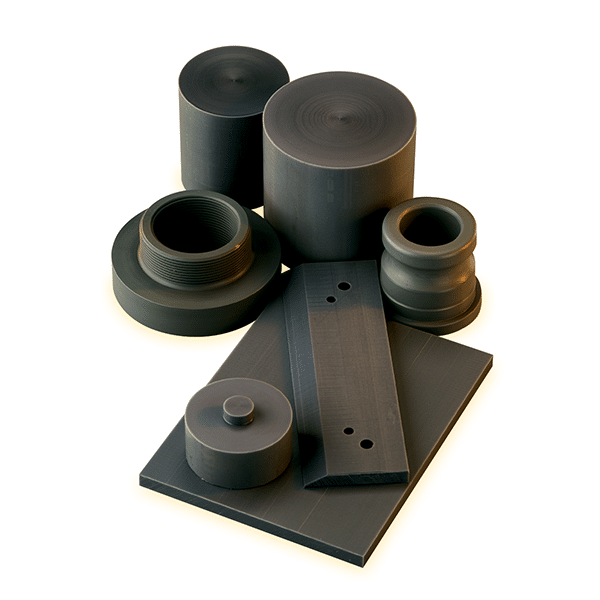

• It is also available in tube and round bar sizes and custom made parts.
